Every few weeks an enquiry reaches us specifying a Y-strainer for a service that will blind it within a fortnight. The engineer has not made a mistake exactly — a Y-strainer will do the job — but nobody asked how often somebody would have to shut the line and pull the screen.
Here is the way we think it through.
What they have in common
Both are devices for mechanically removing unwanted solids from liquid, gas or steam lines by means of a perforated or wire mesh straining element. Both are installed in pipelines to protect pumps, meters, control valves, steam traps, regulators and other process equipment downstream. Both are available cast or fabricated, in carbon steel, stainless and a range of alloys.
If your only requirement is “stop debris reaching the pump”, either will satisfy it. The differences show up in service.
1. Orientation and installation
Y-strainers can be installed in horizontal or vertical (downward) pipelines. The screen sits in the angled leg, which means the leg needs clearance — and on a horizontal line that leg should point downward or slightly to the side so collected debris does not fall back into the flow when the line stops.
Basket strainers are for horizontal lines, with the basket vertical and the cover on top. They need headroom above the pipe for the cover and the basket to come out, which is easy to forget when the line is at high level or under a platform.
This alone rules out one option surprisingly often. Measure the space before you specify the type.
2. Dirt-holding capacity
This is the real difference. A basket strainer's element is a deep basket sitting in a large chamber, so it holds substantially more debris before the pressure drop becomes unacceptable. A Y-strainer's screen is a smaller cylinder in a narrower leg.
Basket strainers are intended for applications where large amounts of solids particulate are expected and where the clean-out will be frequent. If you know the line is dirty — raw water, a system being commissioned, anything downstream of a tank that has been sitting — the basket buys you time between interventions.
A useful rule of thumb: if you expect to clean more than once a month, the basket will pay for itself in labour and downtime within the first year.
3. Pressure drop
Clean pressure drop is a function of open area relative to pipe area, and for a given line size a basket strainer generally offers more of it. But clean pressure drop is not what causes problems. What causes problems is the drop three weeks in, when the element is half-loaded.
Because the basket holds more before it blinds, its pressure drop climbs more slowly. On a pump suction, where you are already fighting for NPSH available, that difference can be the margin between running and cavitating.
4. Cleaning: who does it, and how often
Cleaning a Y-strainer normally requires removing the screen from the strainer. That means shutting the line, draining locally, breaking the cap and handling a dirty screen — a genuine maintenance job.
A basket strainer offers top removal of the screen. The screen is in the form of a basket with a lifting handle, so all particulate captured and retained can be easily removed for disposal. On larger sizes the cover can be specified with a hinge, a clamp or a davit lifting device so a heavy lid can be swung aside safely rather than lifted by two people and a prayer.
Two options reduce the frequency either way:
- A blow-off drain connection on a Y-strainer increases the time between cleanings by letting accumulated debris be flushed out under pressure.
- A modified cone-bottom basket can be tilted with automatic or manual blow-down through the drain port, allowing clean-out without removing the screen and without interrupting the flow process.
5. Cost and footprint
Y-strainers are the cost-effective, space-saving option. They are smaller, lighter, cheaper to buy and cheaper to install, and on clean services in small bore they are simply the correct answer. Specifying a basket strainer on a clean instrument air line is money spent on capacity you will never use.
Basket strainers cost more, weigh more and need more space — and are worth every bit of it on a dirty service.
The short version
| Choose a Y-strainer when | The service is relatively clean, the bore is small to medium, space is tight, the line runs vertically, or budget is genuinely the constraint. |
|---|---|
| Choose a basket strainer when | Heavy solids are expected, clean-out will be frequent, the bore is large, pressure drop over time matters, or maintenance access is difficult and you want fewer interventions. |
| Choose neither when | The line cannot be stopped at all — see below. |
When the answer is a third thing
Two situations make both of the above the wrong choice:
The line cannot be shut down. Use a duplex strainer — two basket housings with a changeover handle between them, so flow is diverted to one side while the other is cleaned. Depending on nominal bore these filter down to around 40 microns. Standard across process, power, chemical, oil and gas, pulp and paper, pharmaceutical, mining and firefighting service for exactly this reason.
Nobody is going to clean it regularly. Be honest about this one. An automatic self-cleaning strainer uses the system's own pressure to clear the element on a timer or on differential pressure, handling particles from roughly 5 to 4,000 microns without a shutdown. It costs more up front and removes an entire recurring maintenance task.
And if the requirement is temporary — protecting new plant during flushing and commissioning — a conical temporary strainer is the cheap, correct answer. Fit it, run the system clean, take it out. Just make sure somebody actually takes it out.
What we need to quote either one
Size and nominal bore, pressure rating or class, body and element material, end connection type, quantity, and the media with its temperature and duty. Perforation or mesh specification if you have one; if you do not, tell us what you are protecting and we will recommend it.

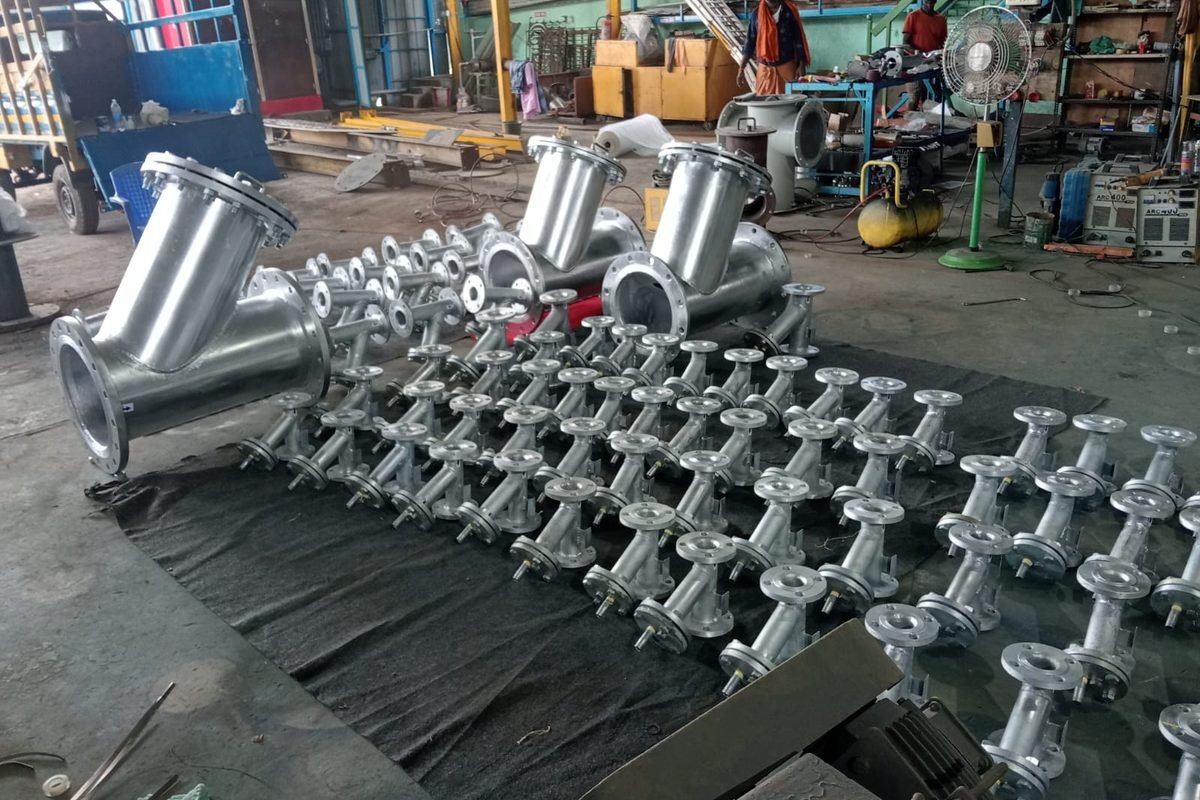

We manufacture both types from ½″ to 60″ — Y-strainers in ANSI classes up to 2500, basket strainers in ANSI 125–600# with cast iron, ductile iron, cast steel, stainless, chrome-moly and bronze bodies.
